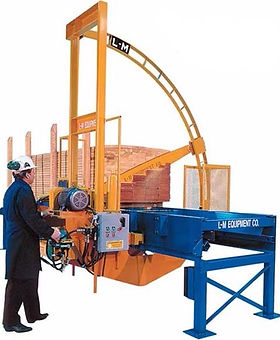

Model HMPC-7-24 Traveling Arch Saw
This model of Package Cross Cut Saw offers incredible value, for a stationary turn key system. With a cutting tolerance of +-1/16" and a beautiful surface finish, even the smallest pallet manufacturer could justify the expense with the tremendous pay back calculation. Huge Labor savings. One person could process a 16' lift in 10 minutes or less!

This Hydraulically controlled system uses a STEEL arch to guide the 7' long stellite inlaid saw bar through the package of lumber with amazing ease. Once the operator presses the saw cut lever, the saw will cut through automatically until it reached the bottom, it will then shut the saw motor off and wait to be raised, using the hydraulic cylinder. Another hydraulic valve is used to move the saw carriage to the next cut location. This system also offers a laser light to indicate saw cut position, as well as digital readout system.

Standard Features:

Steel Guide Arch, with rigid bottom mounting support
15HP 220/460/575 Volt TEFC Electric Saw Motor
2HP Hydraulic Unit Motor
Hydraulic Controls for saw cutting, and cut positioning
Heavy Duty Steel Construction
7’ DE Stellite inlaid saw bar
Automatic saw chain lubrication system
Standard .404 Pitch saw chain with 5/16” Kerf
Safety sheilds for operator protection
All components are high quality, locally available

Traveling Arch Saw

- Hydraulically Controlled - No Manual Cutting!

Options:

Laser light to indicate saw cut position
Electronic digital length measurerment
Hydraulic fluid heater
Waste conveyor system
End plate, to help square package ends

Capacities:

48” High x 52” Wide
18’ Lg. Max. HMPC-7-24
20’ Lg. Max. HMPC-7-26

Portable Yard Saw

The L-M Portable Yard Saws are the most popular portable saws manufactured in North America, with well over 300 machines in operation world wide.

These durable saws are mounted on three wheels, and offer a standard 3" side shift for ease of operation. The side shift allows the operator to line up on the mark without having to physically move the saw over, simply pull on the handle and lock it in place. Heavy bumpers are mounted on the front to hold the saw square to the lumber package, once it is square, a positive lock brake system will hold the saw in place until your cut is complete.

Standard Features:

3” Side Shift Travel for easy precise placement
Very rigid and solid construction, built to last
Mounted on three wheels makes for easy moving and no lifting required for the operators
High yield titanium carbide alloy saw bar to ensure longevity
Standard .404 pitch saw chain with 3/8” Kerf
An engineered drive assembly to allow forgiveness, when pinching or binding takes place, which helps avoid chain breakage
Positive locking brake system

The Model 100MP-7-SS is powered using
a 10HP 3 Phase 220V, 460V or 575V electric motor.

10HP 220/460/575 Volt TEFC 3 Phase Motors
15HP available for hardwood applications
Automatic saw chain lubrication system
Large Capacity Chain oiler resevoir
Quick tension chain take up assembly
Aluminum guard/following guide
Package capacity 48” high x 52” wide
Larger capacities available upon request

The Model 200MP-7-SS is powered by a 20HP Honda 4 stroke electric start engine, using a centrifugal clutch to stop the saw chain at idle.

20HP Electric start, Honda gasoline engine
4 Stroke quiet engine, straight gas, no mixing
Centrifugal clutch to stop saw chain at idle
Large capacity gasoline fuel tank
12” Pneumatic or solid rubber tires
Quick tension chain take up assembly
Package capacity 48” high x 52” Wide
Larger capacities available upon request

Traveling Arch Saw // I-CUT System // Verticut with Carriage // Verticut P4 System // Verticut Rollcase System

Standard Features and Specifications

Flexible design to accomodate cutting capacity from 20 to 60 foot and longer
Multiple package loading for increased production
Precision linear bearing guide system to ensure longevity and accuracy
15HP Heavy duty engineered saw drive assembly
Positive package hold down mechanism, with built in saw guard
Industry standard .404 pitch saw chain with 5/16” kerf
Maximum guarding for operators protection
Heavy duty ridgid construction
Hydraulically operated

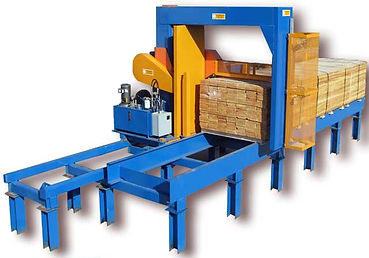

I-CUT System

MODEL 30-HM. Newest technology to achieve consistent accuracy

Our newest design, with a cutting tolerance of +- 1/32”

I-Joists, Structural Components, Studs, Pallet Stock, Fencing and More!

Options

Laser light
Electronic length measuring
FACT cutting technology
Auto cut cycle
Fully automated PLC controls
Operator weather protection
Built in waste conveyors
Hydraulic fluid heater

Cutting Capabilities

48” High x 52” Wide , Unlimited length

Verticut with Carriage system using manual operated controls is the most competitively priced turn key system still offering the P.E.T. cutting tolerance of +- 1/32" with the incredible surface finish. The operator uses a laser light or digital readout system to position the package for the correct cut location, he then presses the cut button, the saw will proceed with the cut and shut down once it is through the package. The operator can then activate the package lift to open up the kerf, and allow a clear path for the saw to raise. Once the operator raises the saw, the package can then be positioned for the next cut.

This system should be your first choice, for a high production, extremely accurate and most competitively priced turn key system on the market today!

Verticut with Carriage

Verticut System with Carriage and Manual Controls

This is the only system that offers wireless remote starting. Another amazing feature is that the operator does NOT have to manually position for the initial first cut.

Two packages can be placed on the carriage at once and programmed for cuts. Depth controlled cutting is also a feature to automatically stop the cut before it cuts through the bottom few boards. The integrated hold down/guard mechanism is extremely important for operator protection.

"FACT" (Fast Advanced Cutting Technology - Patent Pending) cutting will substantially reduce cutting time. The saw will automatically advance to the package at a much greater speed, than cutting speed. When the saw gets to within 2" of the package, it will automatically switch to a slower cutting speed. This is even more beneficial on all lumber packages less than 48" tall.

Programmable touch screen for easy operation
Remote starting

Automatic control system
More operator protection and comfort

Verticut P4 System

Our Most Accurate Package Cross Cut System

Verticut P4 Fully Automated System with "FACT" Cutting Technology offers an incredible P.E.T cutting tolerance of +- 1/32" with a finish as good or better than conventional trim saws.

Standard Features:

Heavy duty and rigid construction
Precision guided verticut saw assembly
High yield titanium carbide alloy saw bar with stellite rails to ensure longevity
Standard .404 pitch saw chain
An engineered drive assembly to allow forgiveness when binding takes place
Soft start, push button cutting cycle
Built in amp meter to monitor peformance
All components available in North America
